XQ-Power BLS8175D HV Digital Servo

Authorized USA distributor.

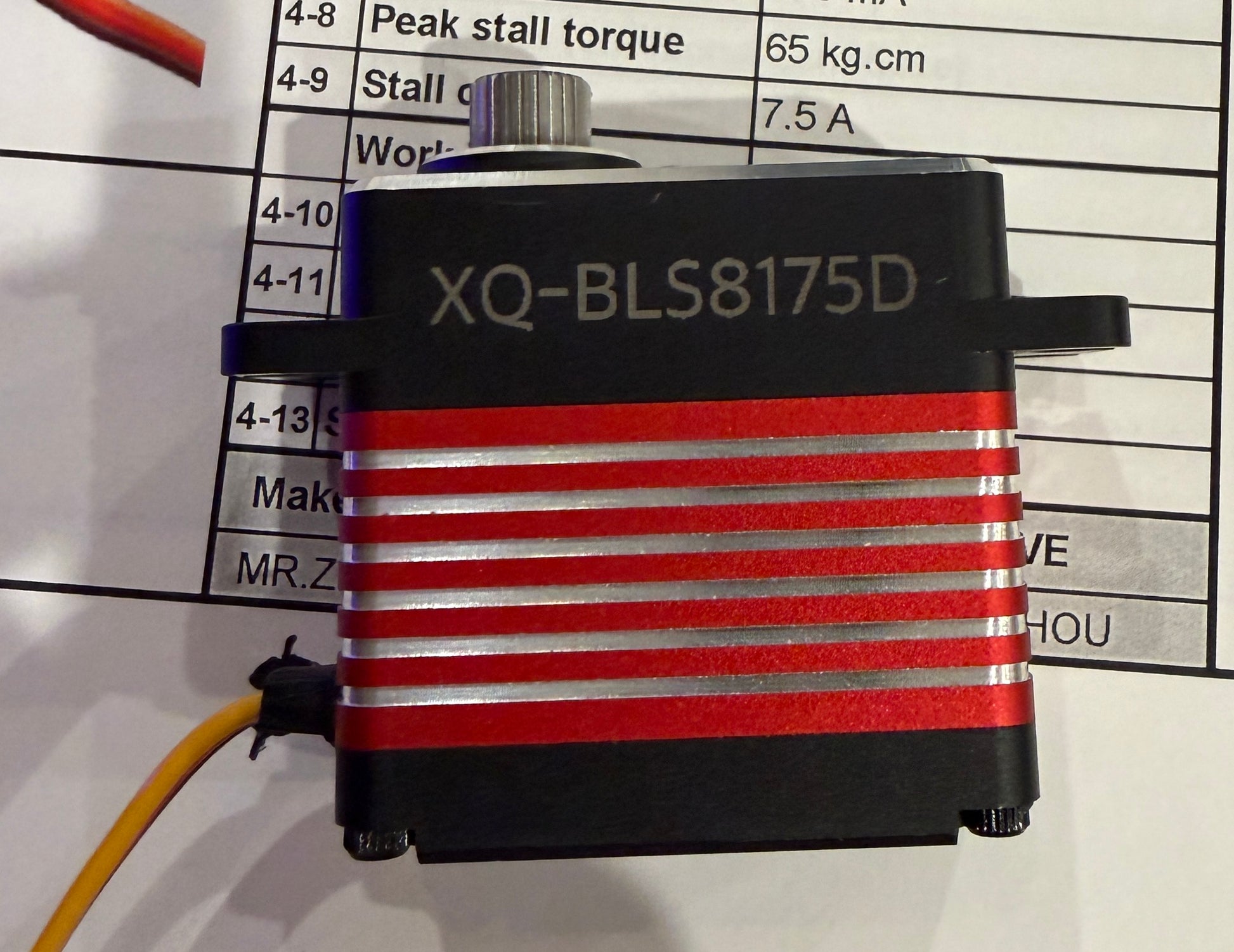

BLS8175D High Voltage Digital Servo

• The BLS8175D from XQ-Power is a high-end brushless digital servo designed for applications requiring exceptional torque and precision. Its advanced brushless motor technology provides smooth, powerful operation with minimal maintenance needs.


• This servo is particularly well-suited for large-scale models and heavy-duty robotics applications where reliable, high-output performance is essential. The digital control system ensures accurate positioning and responsive behavior, even under substantial loads.

Size: 20*40*38mm
Gear: Stainless steel gear

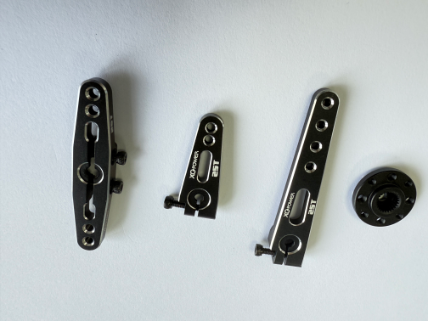

Spline: 25T - 8mm
Motor: Brushless motor
Casing: CNC aluminum casing
Weight: 88g (2.7oz)
Programming: Soft start

Speed/Torque/Voltage:

0.08 sec/60°, 75kg.cm(1042 oz.in) @8.4V

0.11 sec/60°, 65kg.cm (902.7 oz.in)@7.4V

0.13 sec/60°, 153kg.cm(736 oz.in)@6.0V
